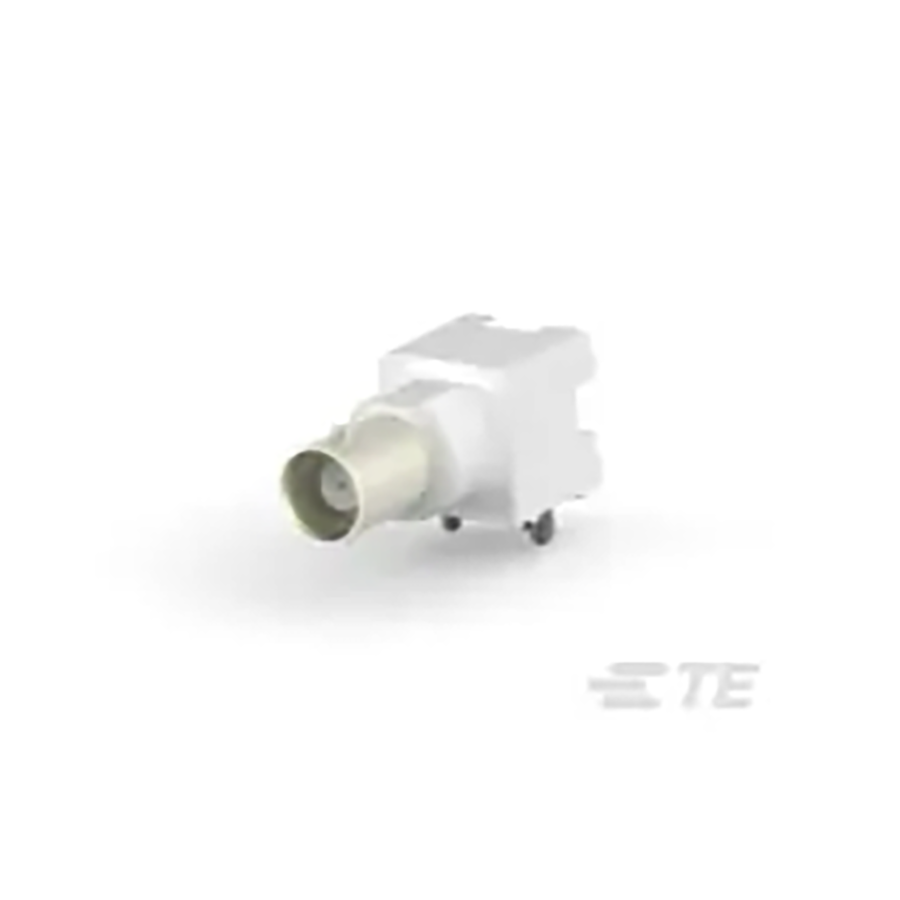

5227161-1
Manufacturer:
TE Connectivity
Mfr.Part #:
5227161-1
Datasheet:
Description:
RF / Coaxial Connectors Through Hole BNC 50 Ω
| Parameter | Value |
|---|---|
| Length | 14.76 mm |
| Width | 14.76 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Height | 15.88 mm |
| Packaging | Bulk |
| Voltage Rating | 500 V |
| Depth | 14.76 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Dielectric Material | Polymethylpentene |
| Contact Plating | Tin |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Bronze |
| Frequency | 4 GHz |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | White |
| Gender | Jack (Socket) |
| Number of Contacts | 1 |
| Body Material | Zinc |
| Connector Type | BNC |
| Max Frequency | 4 GHz |
| Number of Positions | 1 |
| Insulation Material | Polymethylpentene |
| Housing Material | Polyester |
| Fastening Type | Bayonet |
| Outside Diameter | 14.529 mm |
| Housing Color | White |
| Body Plating | Nickel |
| Tail Length | 4.1148 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Sealable | No |
| RF Series | BNC |
| Contact Termination | Solder |
| Shield Termination | Solder |
Stock: 1159
Distributors
pcbx
pcbxUnit Price$2.30917
Ext.Price$2.30917
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.30917 | $2.30917 |
| 10 | $1.96463 | $19.64630 |
| 25 | $1.94667 | $48.66675 |
| 50 | $1.80301 | $90.15050 |
| 100 | $1.66995 | $166.99500 |
| 300 | $1.54671 | $464.01300 |
| 500 | $1.43256 | $716.28000 |
| 1000 | $1.32685 | $1326.85000 |
